System Overview
The Qcon-24 conveying system is the ideal
system for unit and package handling. It
provides an extremely safe, modular, quiet and virtually maintenance free means
of moving product within your facility.
Basic
Specifications
Theory
The Qcon-24 system is made up of modules.
A module is defined as straights, curves, right angle transfers, merges
and diverts. Programmable logic
controllers control the modules. The
modules themselves are further divided into “zones.”

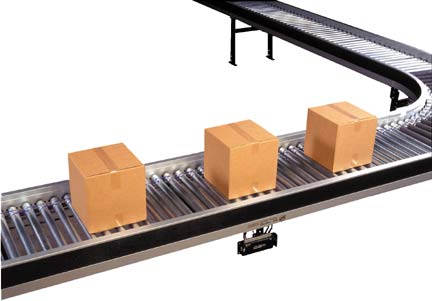

Product can accumulate within each zone if needed.
The zones contain photoelectric sensors and reflectors.
When the photoelectric beams are interrupted, this signals to the PLC
that product is present in that zone. Qcon-24
can run in singulate mode,
or train mode. Normal transport mode is available if specified.
In
singulate mode, a product will not move into a zone until that zone is clear.
In train (slug) mode, a product will move into a zone as the previous product is
moving out of that zone. The Qcon-24 also has the ability to
divert product off of the main flow path. The
Qcon-24 can merge product into a main flow path and can also transfer product
off of the main flow to the right or left or both at a right angle.
In all cases, the product has the option to continue down the main flow
path bypassing the diverts and transfers. IPS created the Qcon-24 with safety,
modularity, quick low cost installation and low maintenance costs in mind.
This “intelligent” system is the most practical system in the
industry for moving totes, product assembly, packages and all unit-handling
applications. We are proud to present the Qcon-24
|
|
